Voltmeter-Multi Tools für Elektriker, Voltmètre multi tools pour électricien

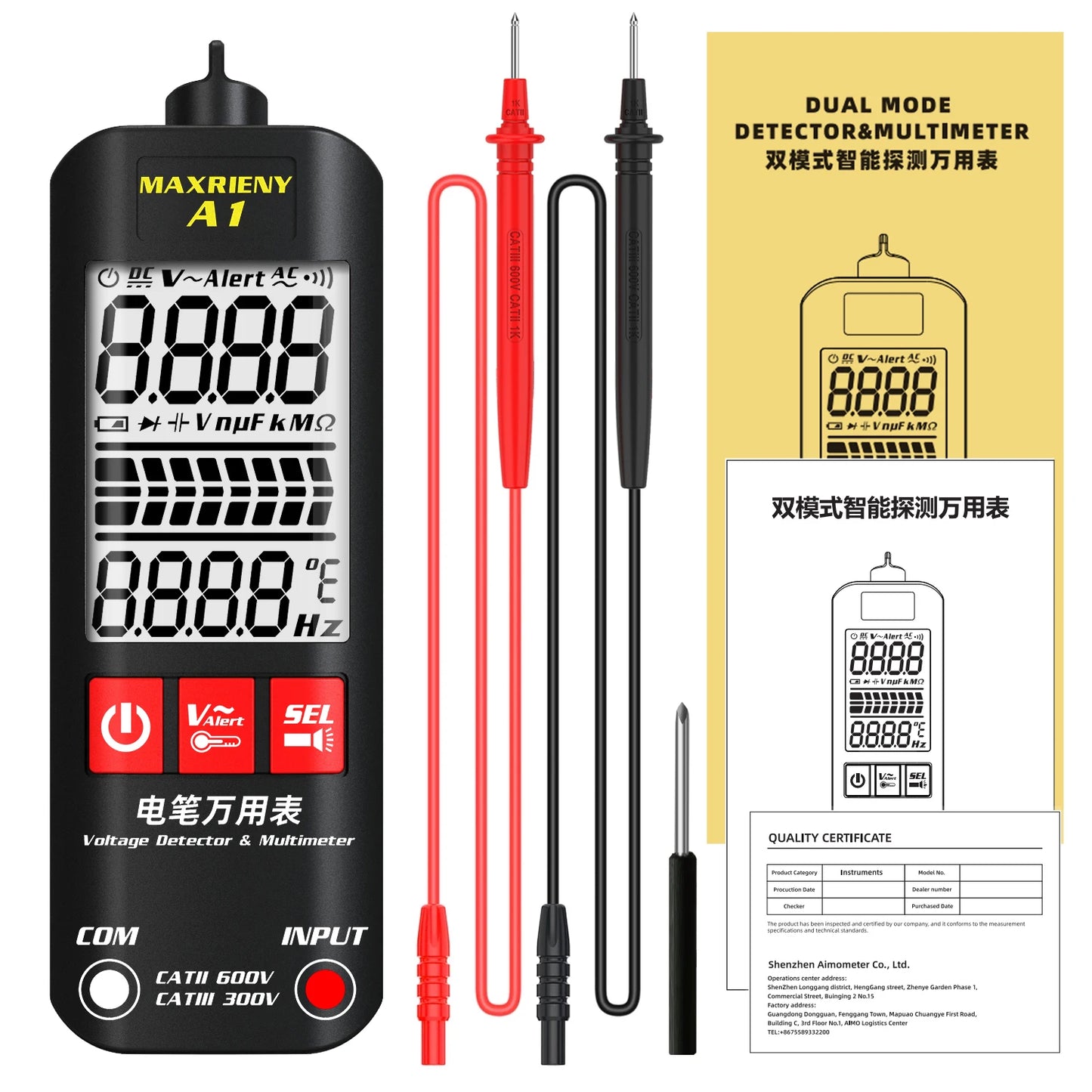

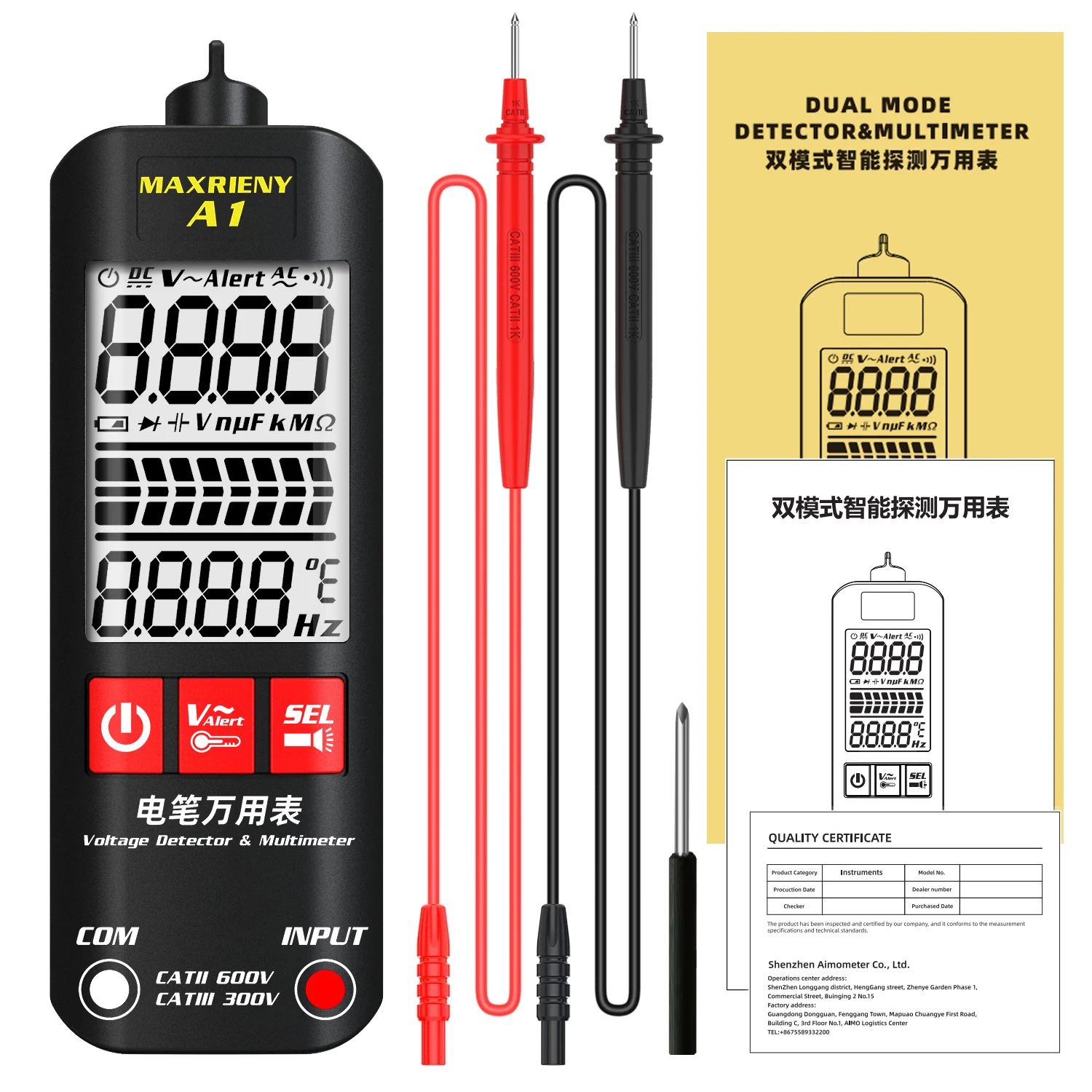

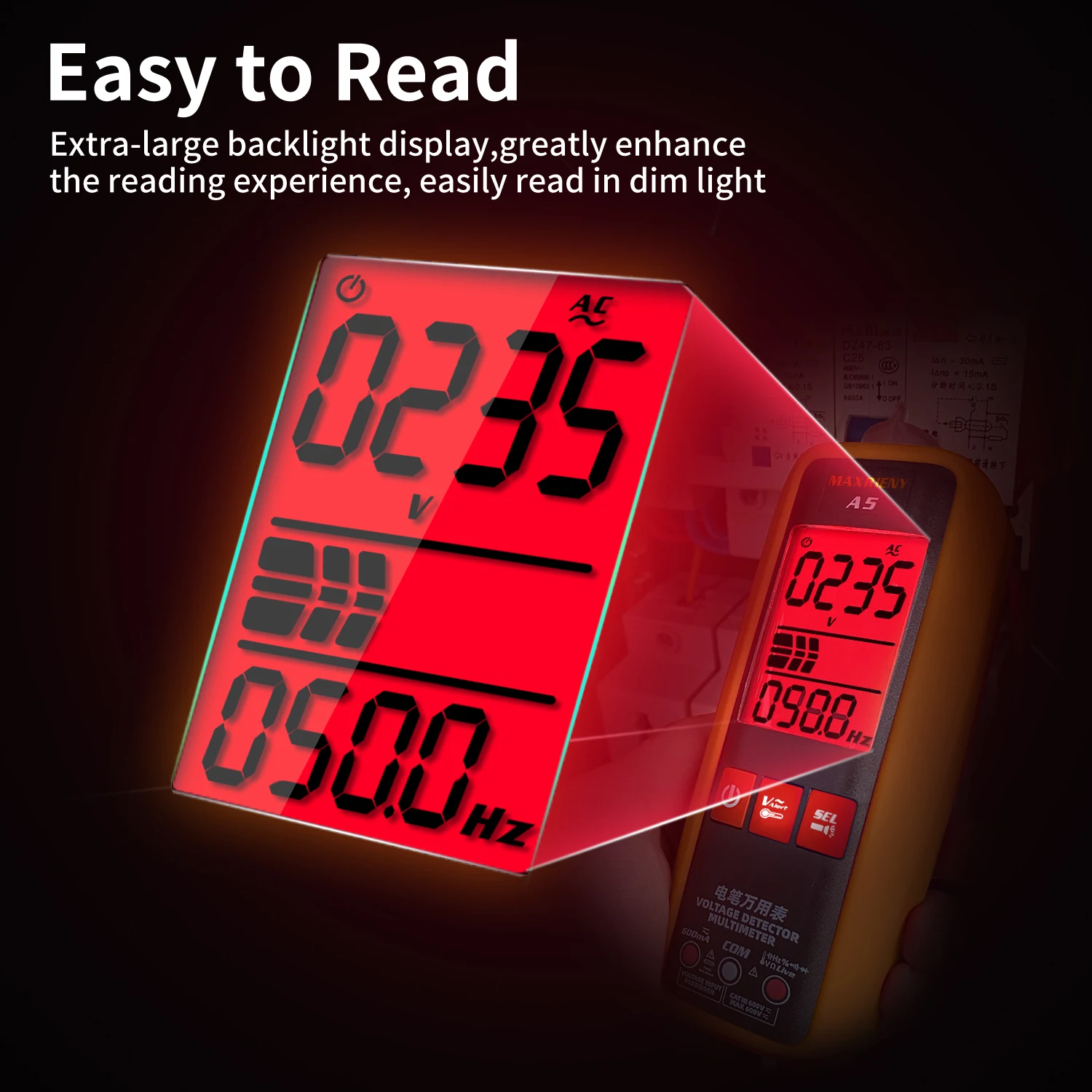

A1: 2.2-inch red/green two-color display design; 1.5V (AAA) battery operation.

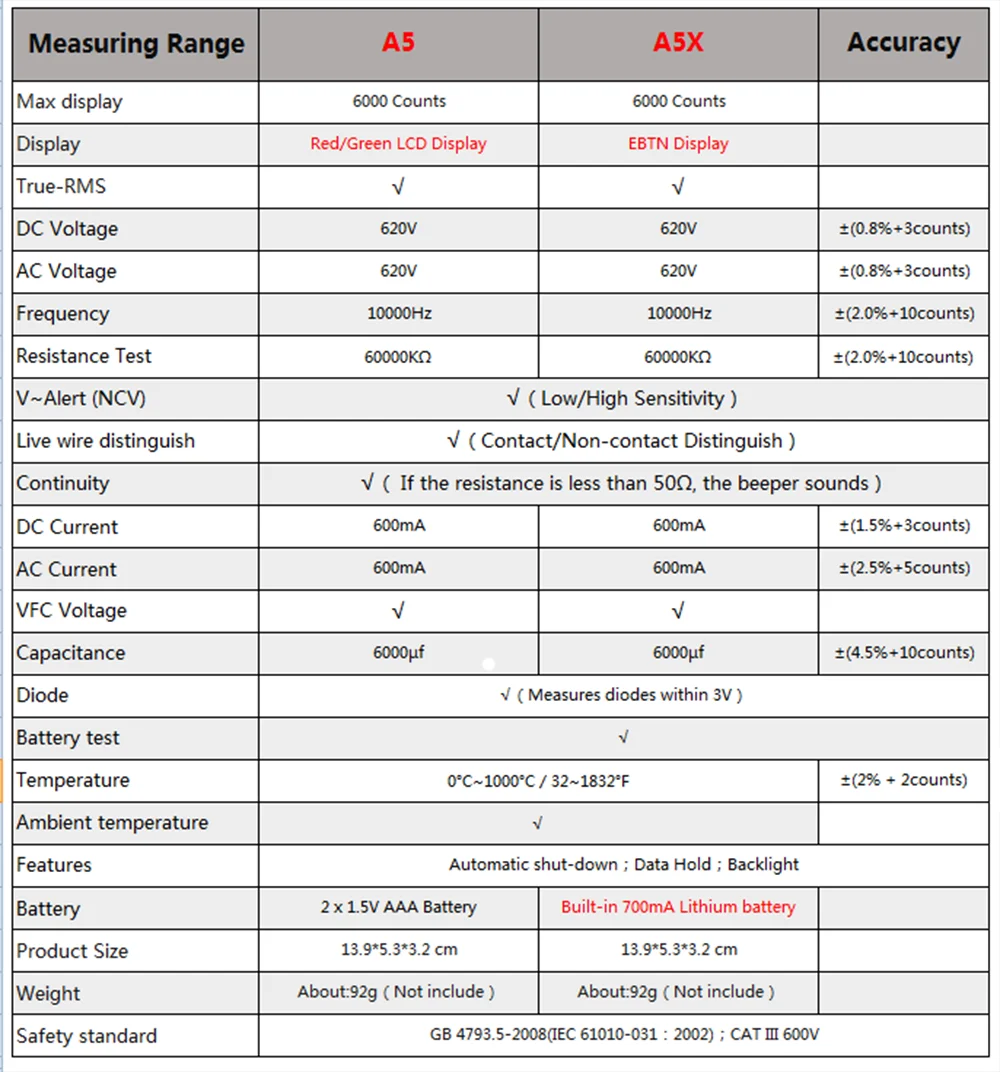

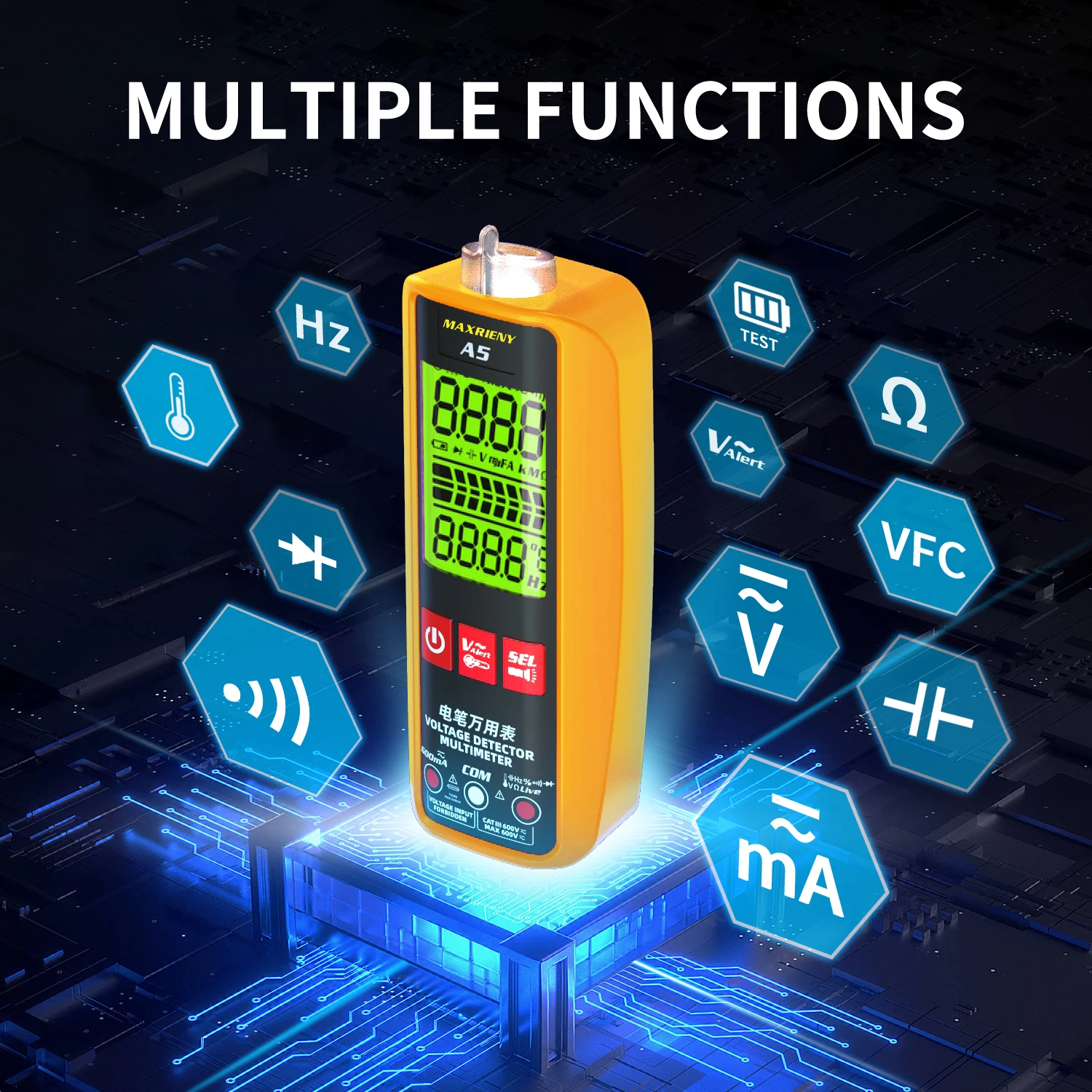

Specifications:

Display: 6000 counts.

True RMS: Yes.

Screen: 2.2 inch.

VFC Voltage: Yes.

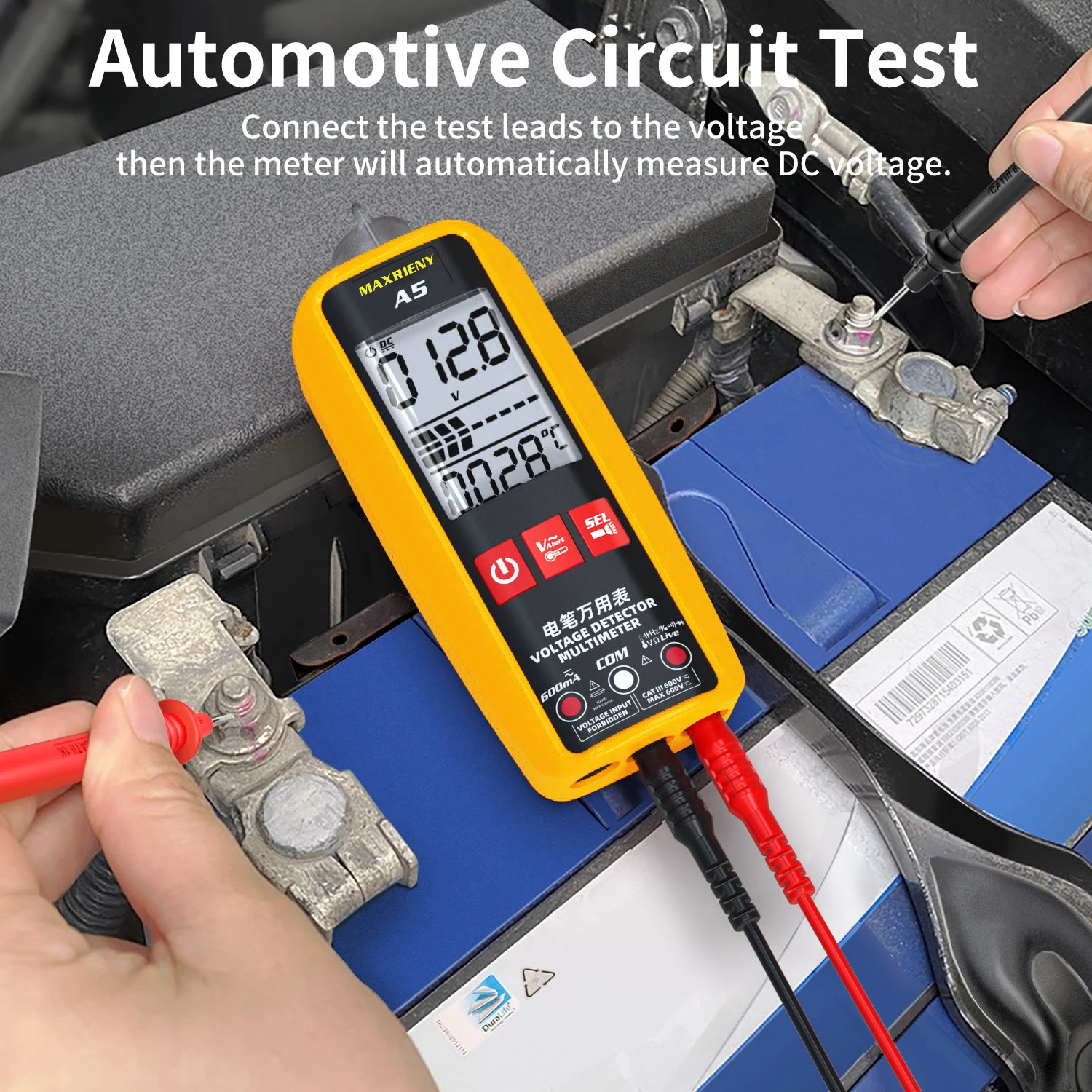

DC Voltage: 0-620V(DC mode)/0.8-620V(Auto mode) 0.01V ±(0.8%+3)

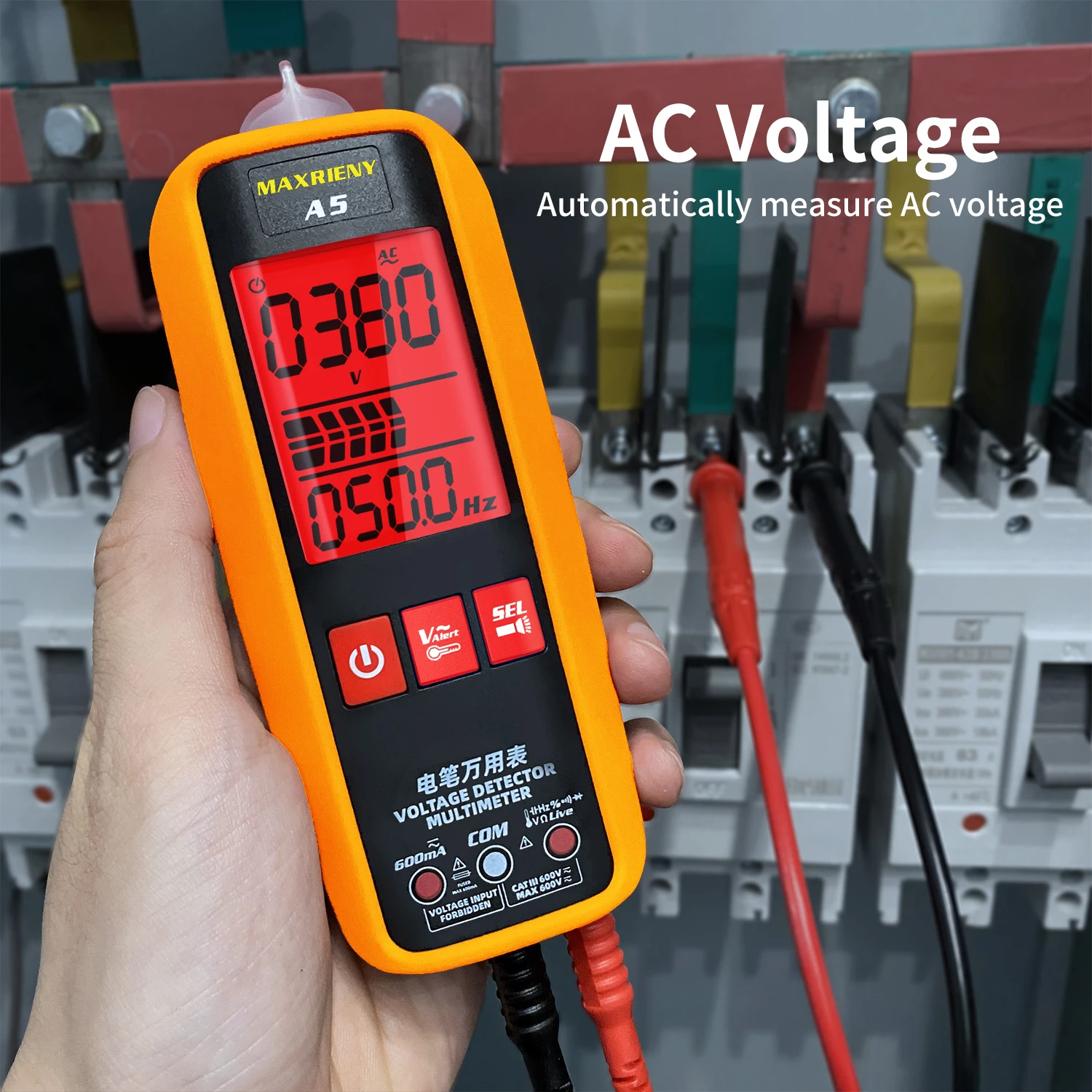

AC Voltage:0-620V(DC mode)/0.8-620V(Auto mode) 0.01V ±(1.2%+5); 10-620V(VFC Mode) 1V (4.0%+3)

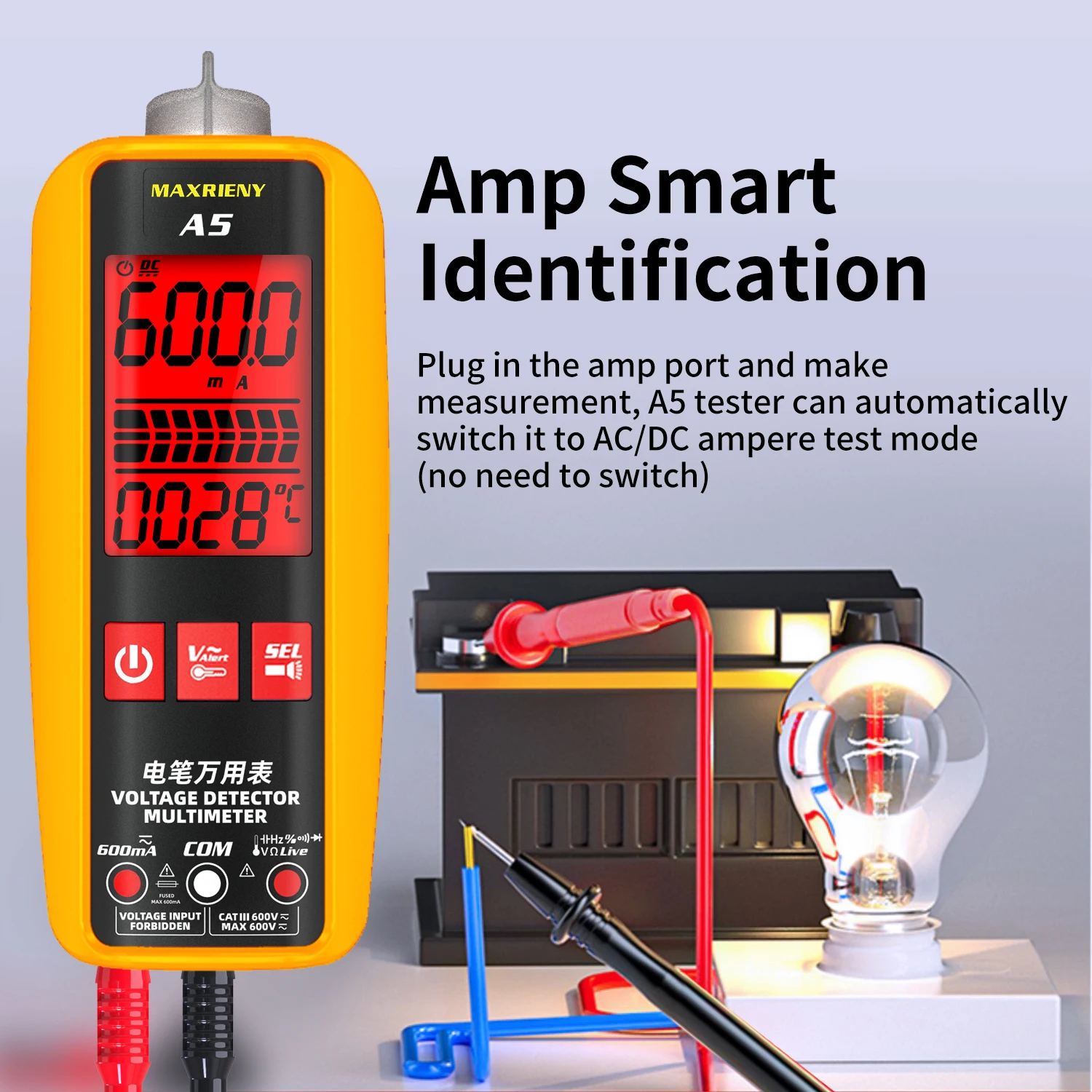

DC Current: 1.0-610mA 0.1mA ±(1.5%+3)

AC Current: 1.0-610mA(40-1000Hz) 0.1mA ±(1.5%+3)

Resistance: 0Ω-6MΩ 0.1Ω ±(1.2%+3)；6MΩ-60MΩ 0.1Ω ±(2.0%+10)

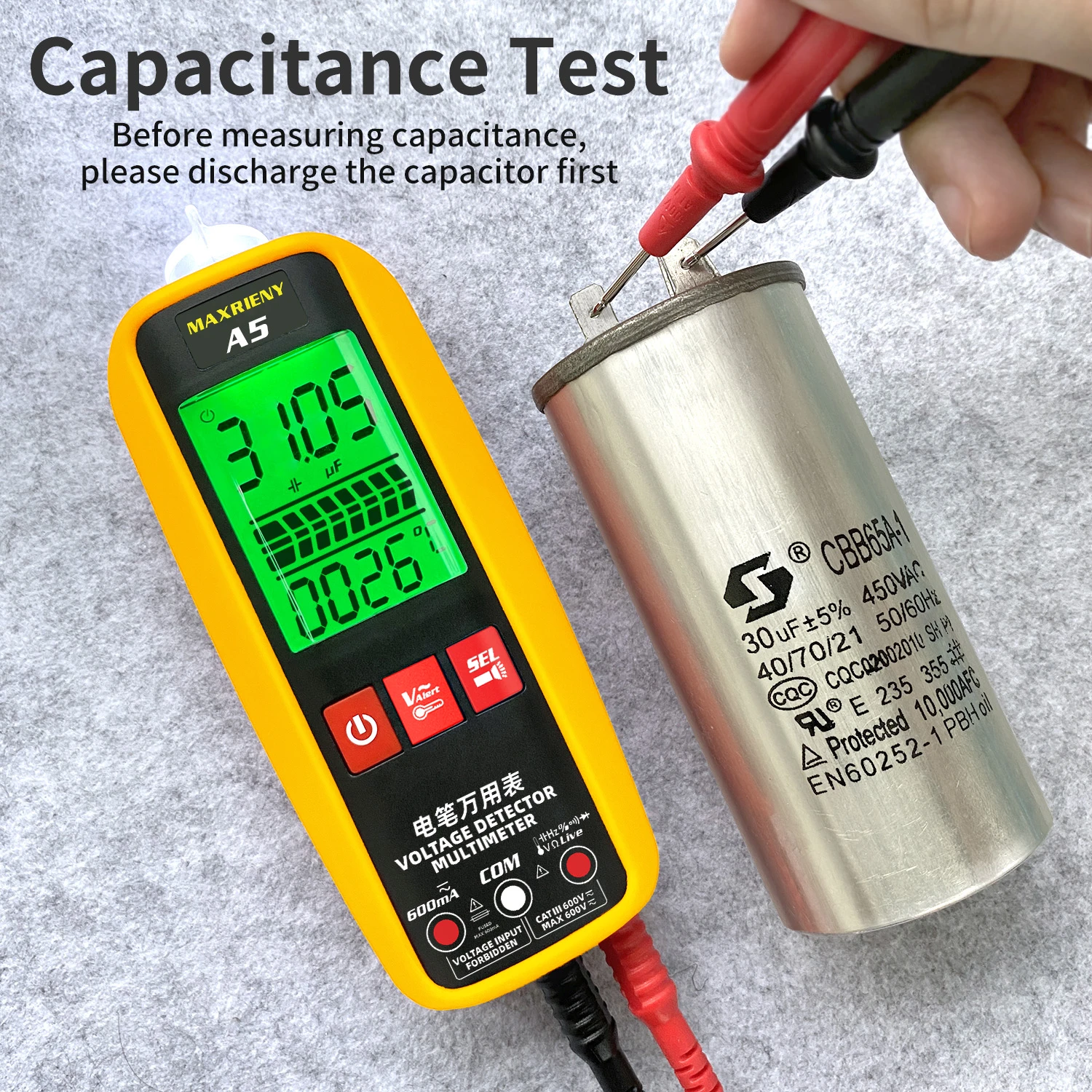

Capacitance: 0.5µF-6mF 0.001µF ±(3.5%+8); 6mF-60.00mF 0.001µF ±(4.5%+10)

Frequency: 0-9999Hz(900mVrms-20Vrms) 0.001Hz ±(2.0%+10)

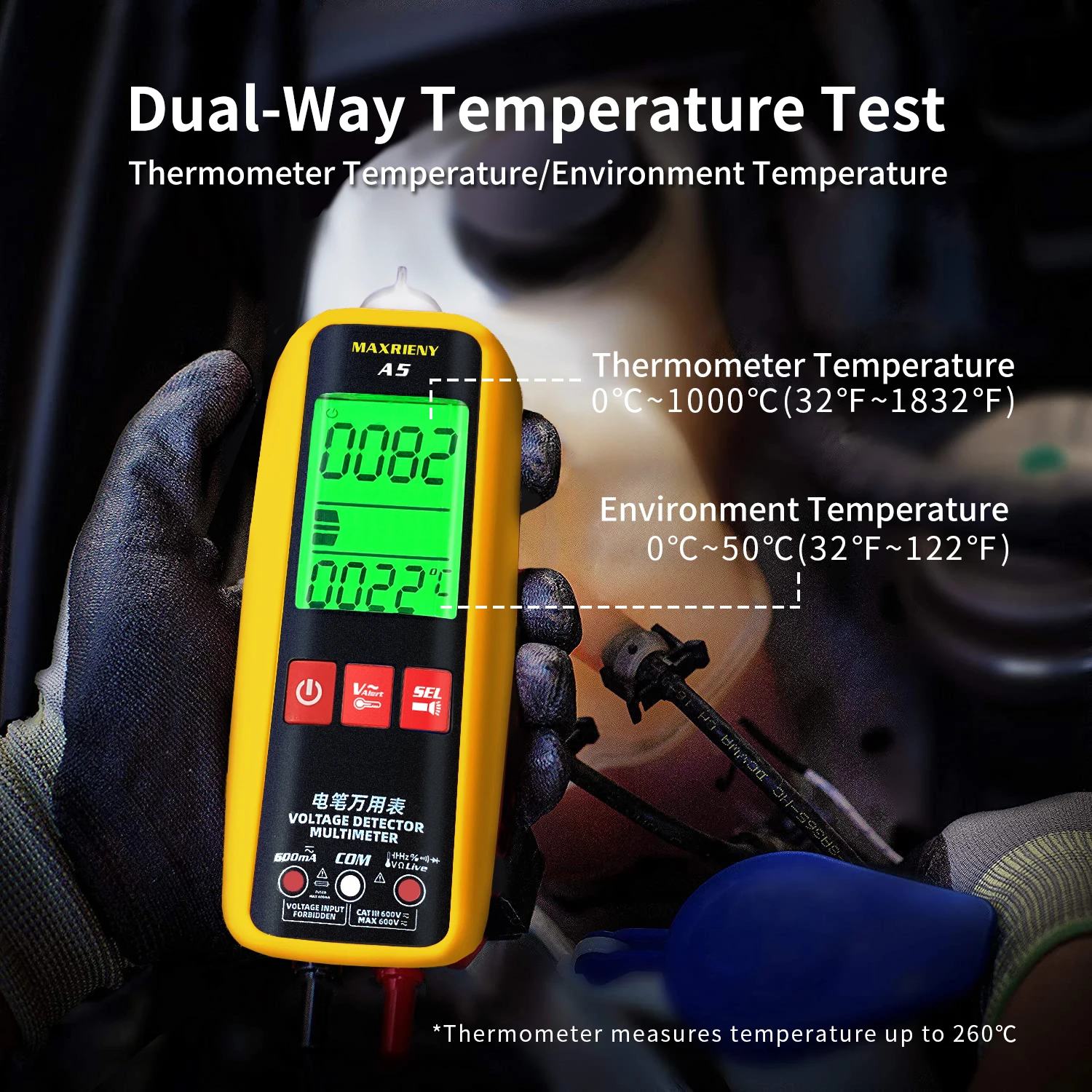

Temperature: 0-50℃(32-122℉) 1℃/1℉ ±(1.5%+2); 50-1000℃(122-1832℉) 1℃/1℉ ±(2.0%+3)

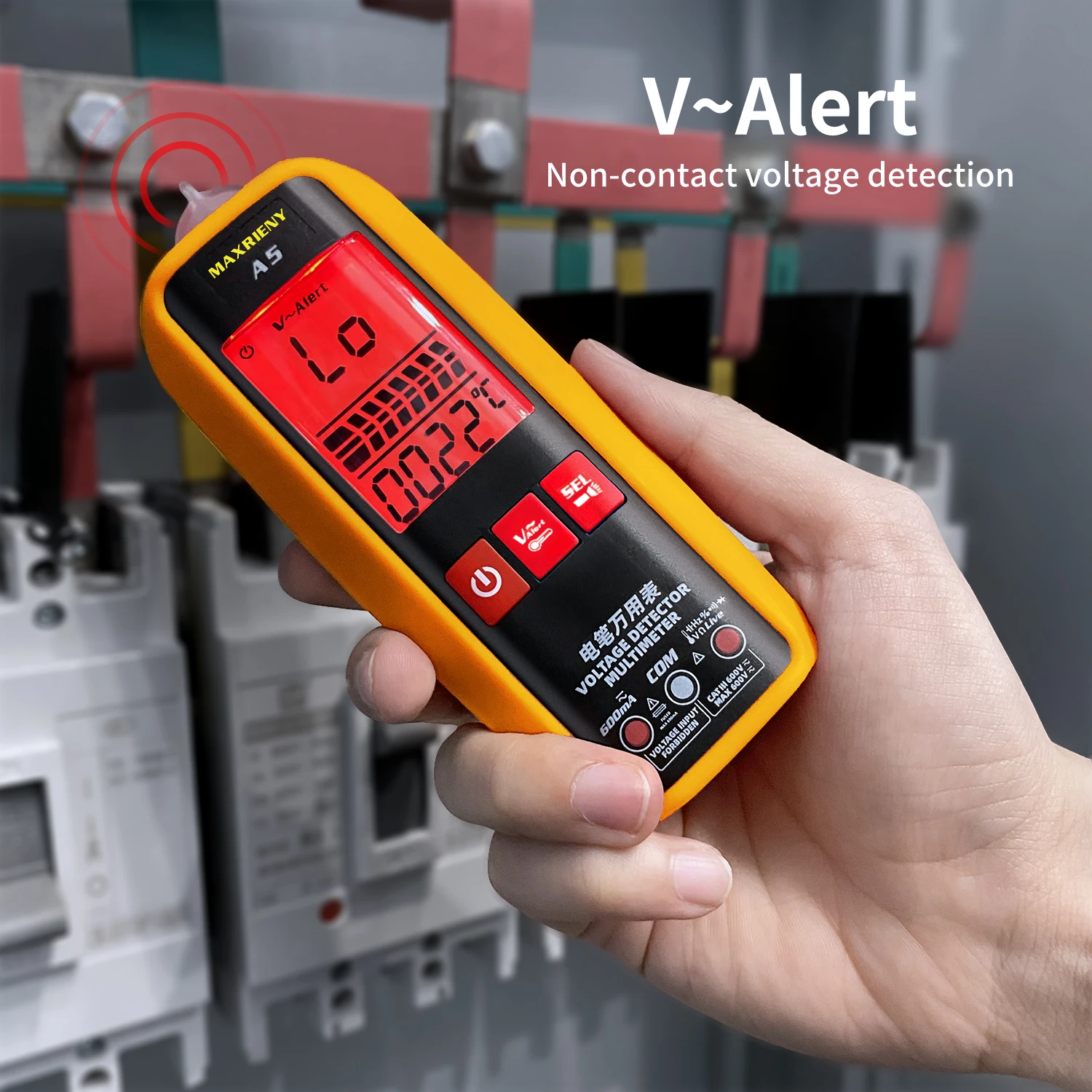

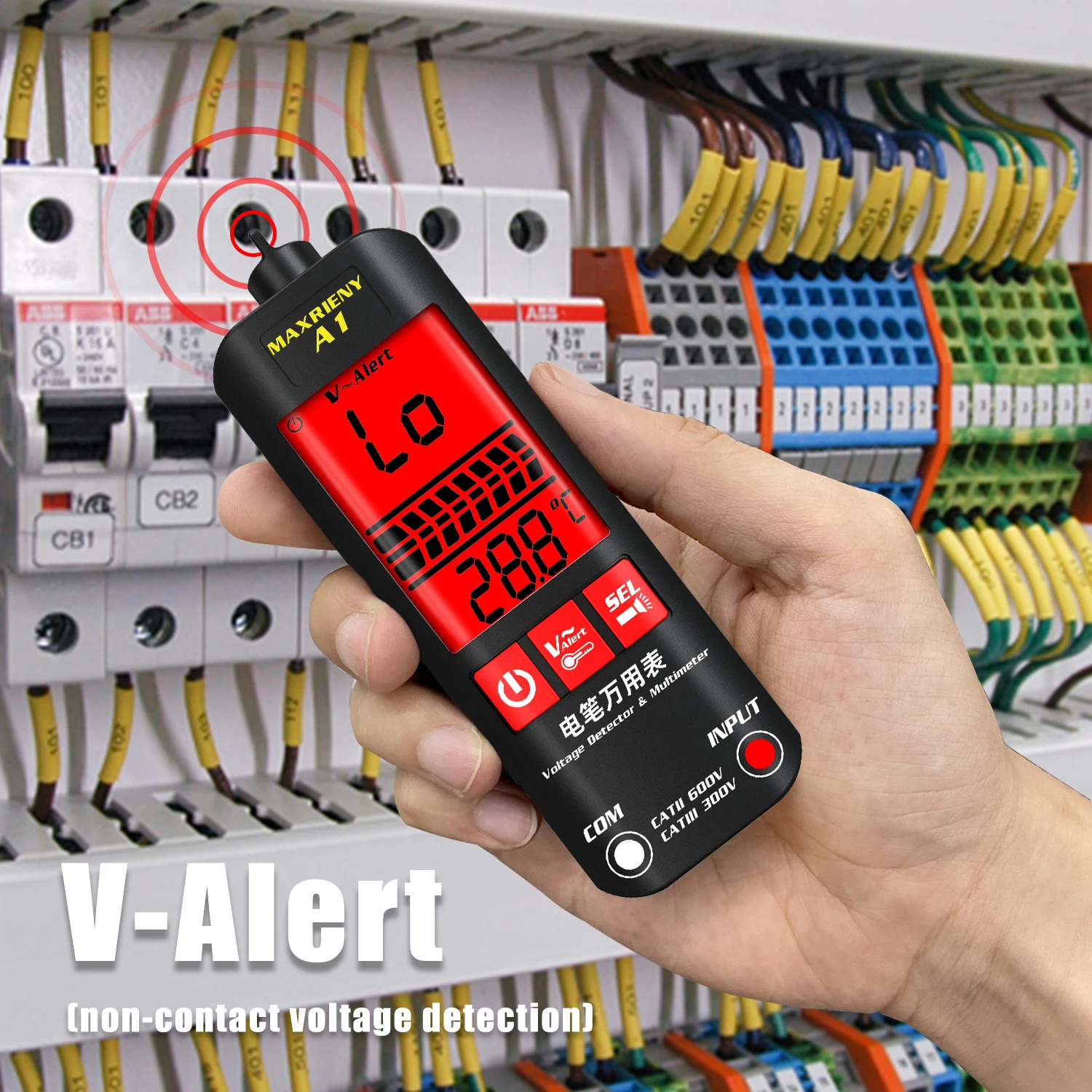

V-Alert(Non-contact Voltage Detection): Yes.

Diode: Measures diodes within 3V.

Continuity: If the resistance is less than 50Ω, the beeper sounds.

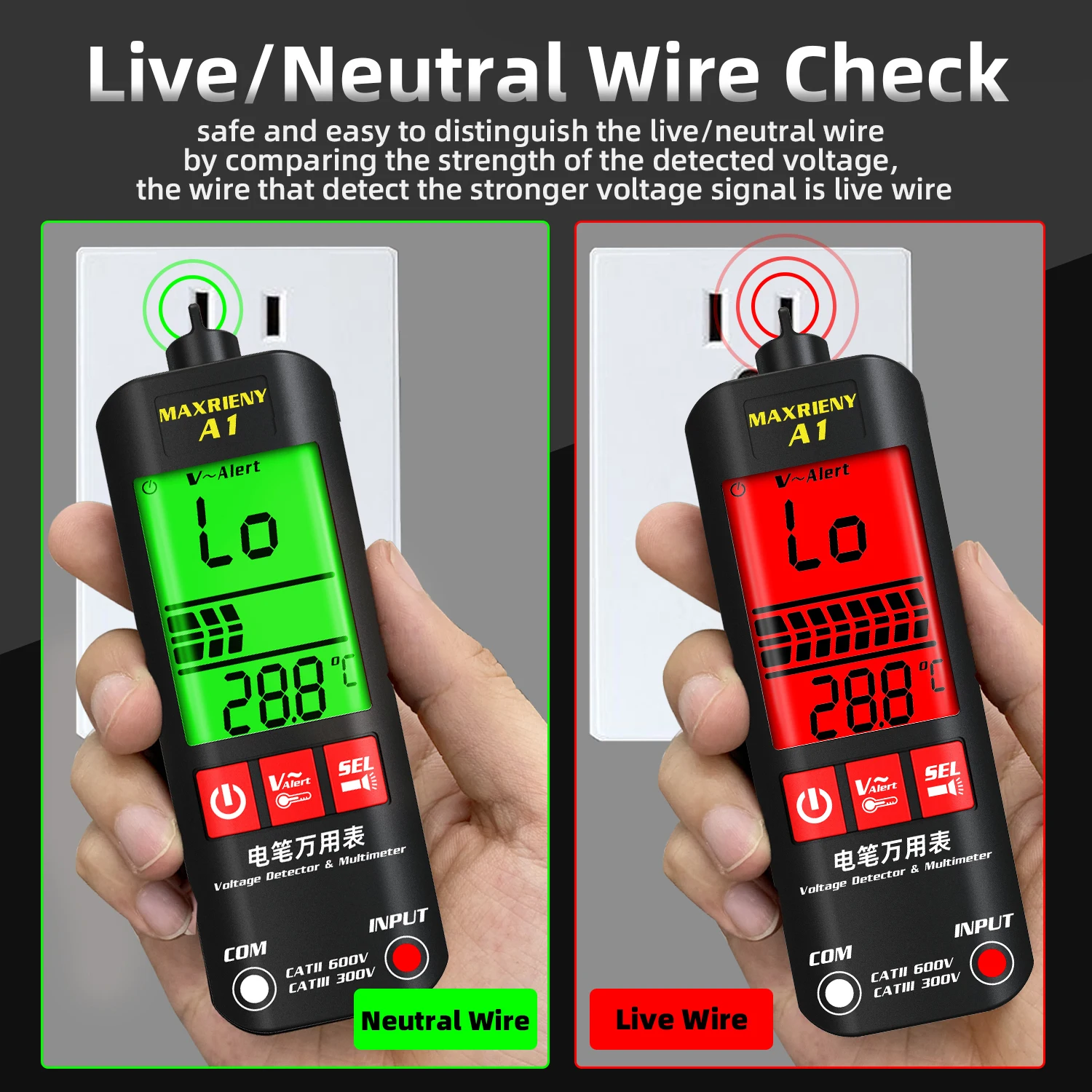

Live Wire Check: Yes.

Ambient Temperature: 0-50℃ ±2℃.

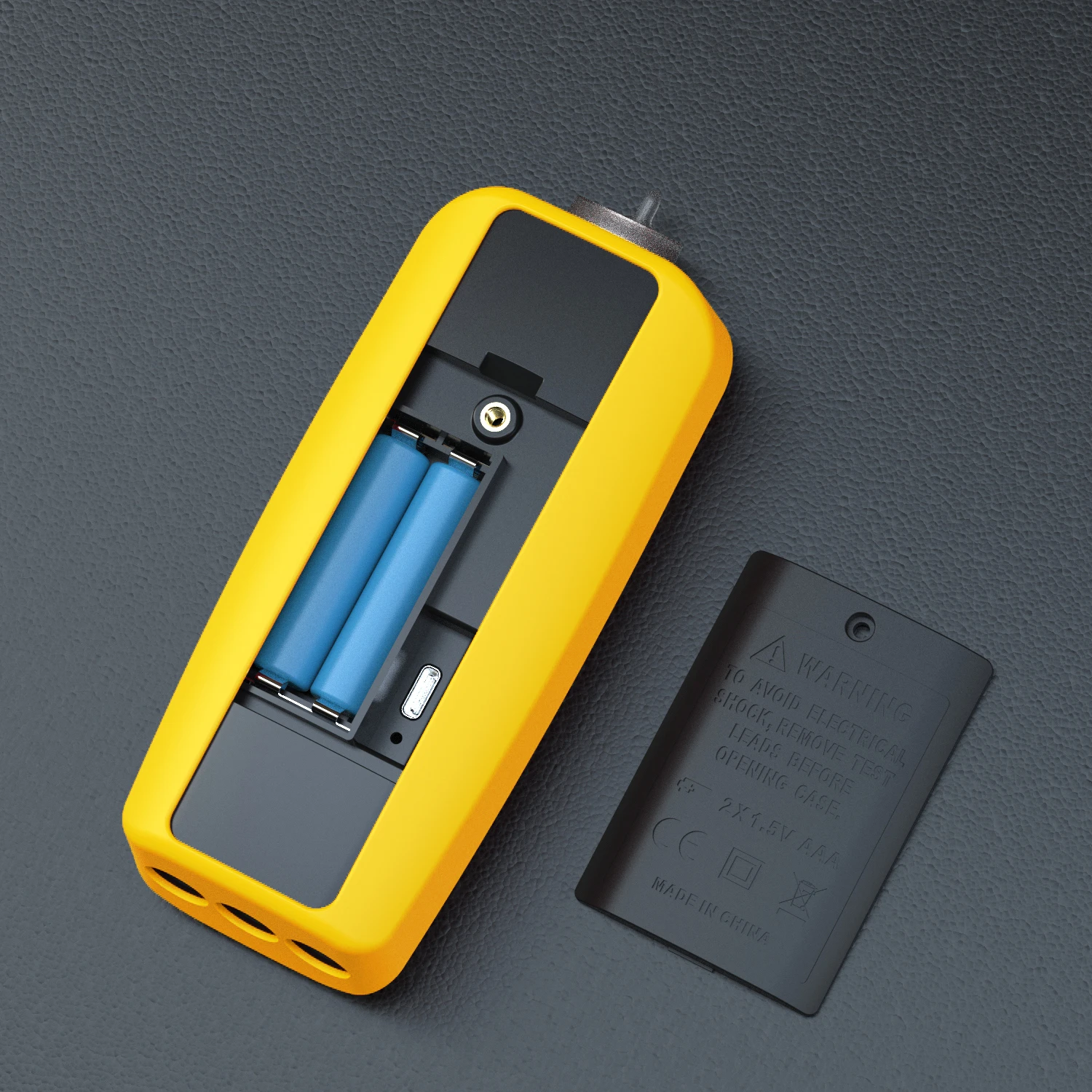

Power: 1.5V (AAA) x 2.

Size: 139.7 x53.7 x 32.8 mm.

Weight: 92g
